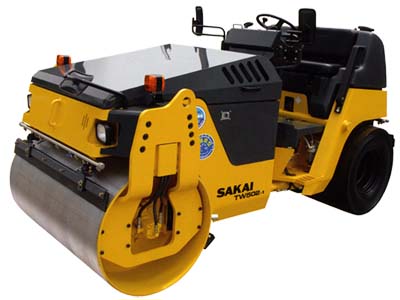

TW502-1

Improved Performance

•	High-Low amplitude selector switch on the 502-1 allows for use in wider applications

Higher Safety

•	Neutral start switch permits the engine to start only when the forward-reverse lever is in the neutral position
•	Sakai's original safety braking system

Reduced Maintenance

•	A resin sprinkler tank with inlet and outlet filters, stainless steel spray pipes and metal one touch nozzles with filter are provided as standard equipment
•	Oil bath lubrication for drum vibrator mechanism

»Specifications are subject to change without notice.

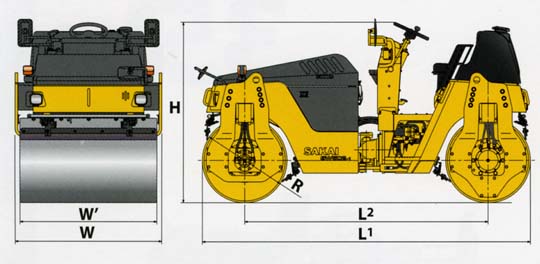

TYPE Vib. Combined Roller

MODEL TW502-1

WEIGHTS

Operating weight kg(lbs) 3,540 (7,800)

Load on front kg(lbs) 1,990 (4,385)

Load on rear kg(lbs) 1,550 (3,415)

DIMENSIONS

Overall length (L1) mm(") 3,105 (122)

Overall width (W) mm(") 1,390 (55)

Overall height (H) mm(") 1,705 (67)

Wheelbase (L2) mm(") 2,300 (91)

Drum width (W') mm(") 1,300 (51)

Drum diameter (R) mm(") 800 (31.5)

PERFORMANCE

Speed range (L/H) km/h (mile/h) 0-9 / 0-12 (0-5.6 / 0-7.5)

Gradability % (deg) 38 (21)

Min. turn radius(outer) m(") 4.3 (169)

ENGINE

Make KUBOTA

Model D1503-t-EDM (Diesel)

Type Water-cooled, 4cycle, with turbocharger

Rated output kW(HP)/min^-1 25.5(34.0) / 2,300

POWER LINE Hydrostatic transmission

BRAKE SYSTEM

Service Hydrostatic dynamic brake through drive system

Parking spring-applied, hydraulically released type (SAHR)

STEERING SYSTEM Hydraulic type (articulated)

FLUID CAPACITY

Fuel tank L(gal) 50 (13)

Sprinkler tank L(gal) 310 (82)
