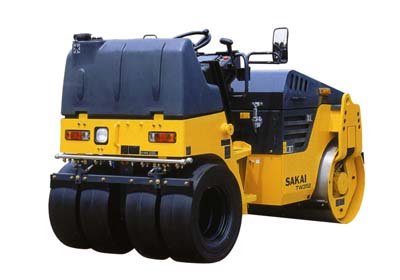

TW352

TW352-catalog Download Catalogue(8MB)



Excellent visibility and optimum performance create high efficiency.

Features

Easy operation and Comfort

  • Fully hydrostatic drive with a forward-reverse lever on each side of the dashboard.
  • Two variable speeds allow the selection of the optimum working speed as well as faster transit speeds.
  • Auto and manual vibration modes are selected via a switch on the dashboard.
  • Vibration on/off switches are also located on each of the forward-reverse lever grips.
  • High curb clearance and small side overhang enable the roller to work right up to curbs and walls.
  • Pressurized and fully corrosion-proof water sprinkler system includes polyethylene tank, stainless pipes and quick-mount type brass spray nozzles along with a triple filtering system.
Ergonomically designed operator seat
  • The soft, seamless bench seat has rounded coners offering the best riding comfort while protecting itself from rain or water penetration.
  • With the wide bench seat and forward-reverse levers on both sides, the operator can take up the optimum driving position. Thus, compaction on shoulders and pavement joints is facilitated due to the easy-to-observe drum edges.
High safety standards
  • Excellent all-round visibility.
  • In addition to the hydraulic service brake and S.A.H.R.
    (spring applied, hydraulically released type) secondary brake, a pedal brake is provided for emergency stops.
Excellent seviceability
  • The engine hood opens fully for easy access to areas requiring daily maintenance; engine, hydraulic system, fuel system, battery, etc.
  • Quick-mount water spray nozzles can be mounted or dismounted without tools.
    They are made of brass, therefore, durability is unsurpassed.
Standard equipment
  • The engine complies with new emission standards.
  • Standard equipment includes head lights, rear working lights, turning signals, spring-loaded plastic scrapers (outer and inner), mirrors, instruments and gauges.

»Specifications are subject to change without notice.
»Engine meets EPA and CARB standards.
TYPE COMBINED TYPE
MODEL TW352
WEIGHTS
Operating weight 2,640 kg (5,820 lbs)
   Load on front 1,480 kg (3,265 lbs)
   Load on rear axle 1,160 kg (2,555 lbs)
SPEEDS (Forward & Reverse)
LOW 0 - 9 km/h (0 - 5.6 mph)
HIGH 0 - 12 km/h (0 - 5.6 mph)
VIBRATING POWER
Frequency 55 Hz (3,330 vpm)
Max. Centrifugal force 20.6 kN (4,630 lbs)
MIN. TURNING RADIUS 3.8 m(150 in)
GRADABILITY 38 % (21 deg.)
ENGINE KUBOTA Diesel Engine
Model D1503-KA
Rated output 20.1 kW (27 HP)
Speed 2,300 min-1
POWER LINE
Transmission Type Hydrostatic transmission
Speed 2 speed shifts
Final drive Direct drive
VIBRATION SYSTEM
Transmission Type Hydrostatic transmission
Vibrator Eccentric shaft type
BRAKE SYSTEM
Service brakeHydrostatic anc mechanical, multi-disc wet type
Parking brake Mechanical, multi-disc wet type
STEERING SYSTEM Hydraulic type (Articulated type)
DRUMS AND TIRES
Front : roll Vibrate & Drive
Rear : roll Drive

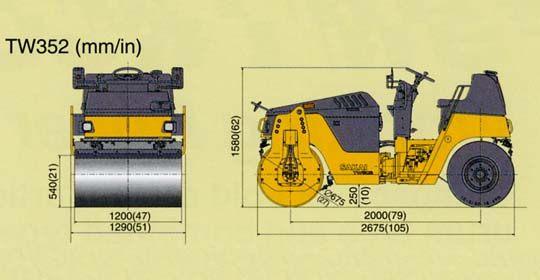

Roll dimensions
  Front roll : width × dia. 1,200 × 675 min-1 (47 × 27)
Tire size 9.5 / 6.5 - 15 - 6 PR (OR)
Number of tires 4
WATER SPRINKLER SYSTEM Pressurized type
TANK CAPACITY
Fuel tank 40 L (10.6 gal)
Sprinkler tank 200 L (53 gal)
