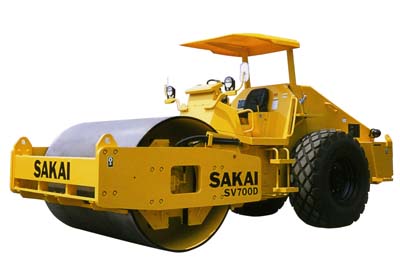

SV700D/T

JOB-PROVEN VIBRATORY PERFORMANCE RESPONDS TO VARIOUS TYPES OF MATERIAL.

Features

Excellent performance

•	Well-balanced front and rear weight distribution contributes to excellent traction and slope climbing ability.
•	The amplitude of the largest in the world class carries out greatest compaction.
•	The hydrostatic transmission offers variable speed ranges and an ideal speed is easily selected for either working or transit.

Easy operation and riding comfort

•	Despite powerful vibration, the chassis and operator are fully protected from vibration thanks to SAKAI's patented, unique vibration isolation system.
•	Due to the rubber isolator mounted operator deck, the operator's riding comfort is excellent, and electrical instruments and gauges are free from vibration.
•	The vibration ON-OFF switch located on the forward-reverse lever facilitates timely vibration control.

High Safety Standard

•

The roller is equipped with dual independent braking systems. The primary brake is hydrostatic and applied through putting the forward-reverse lever in its "NEUTRAL" position. The three-way secondary braking system is a mechanical spring-applied, hydraulically released type (SAHR) that can be operated either through a push button or pedal or automatically through engine or hydraulic system failure.

•

The overall machine design provides the operator with excellent all-around visibility. (1m × 1m)

Excellent serviceability

•	The engine and hydraulic components are enclosed in a compartment. The engine hood opens fully for easy access to engine and hydraulic components for service and maintenance.
•	Large ball bearing and taper bearings are employed in the centerpin mechanism to prolong service life and lubrication intervals.
•	The vibrator bearing lubrication system keeps lubricating bearings even during hillside operation.

Specifications are subject to change without notice.
MODEL SV700D SV700T

WEIGHTS

Gross weight 15,000 kgf (33,069 lbs)

Load on front 8,500 kgf (18,739 lbs)

Load on rear 6,500 kgf (14,330 lbs)

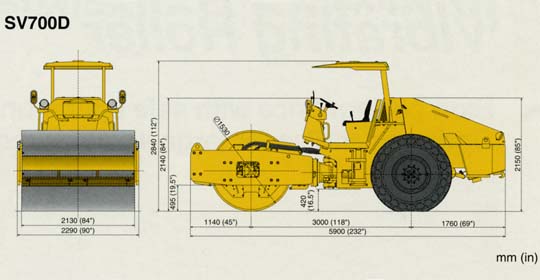

DIMENSIONS

Overall length 5,900 mm (232 in) 5,905 mm (232 in)

Overall width 2,290 mm (90 in)

Overall height without awning 2,150 mm (85 in) 2,160 mm (85 in)

Overall height with awning 2,840 mm (112 in) 2,860 mm (111 in)

Wheelbase 3,000 mm (118 in)

Rolling width 2,130 mm (84 in)

Ground clearance 420 mm (16.5 in) 430 mm (16.9 in)

Curb clearance 495 mm (19.5 in) 530 mm (20.9 in)

SPEED (F & R)

1st 0 - 6 km/h (0 - 3.7 mph)

2nd 0 - 10 km/h (0 - 6.2 mph)

VIBRATING POWER

Frequency

L 36.7 Hz (2,200 vpm)

H 27.5 Hz (1,650 vpm)

Centrifugal force (Max.)

L 220 kN (22,400 kgf)

H 275 kN (28,000 kgf)

L / H 49,383 lbs / 61,729 lbs

Amplitude

L 0.90 mm

H 2 mm

MIN.TURNING RADIUS 5.6 m (221 in)

GRADABILITY 62 % (32deg.)

ENGINE

Model Isuzu "BB-6BG1TRJ" Diesel Engine with turbo charger

Type Water-cooled, 4-cycle, 4-cycle, 6-cylinder in-line, vertical mounted, overhead valve, direct injection type

Piston displacement 6,494 L (396 cu.in)

Rated output 124 kW (169 PS) / 2,200 min^-1

Battery 24V (12V - 100Ah × 2)

POWER LINE

Transmission Hydrostatic transmission

Differential Auto lock type

Final drive Planetary gear

VIBRATING SYSTEM

Transmission Hydrostatic transmission

Vibrator Eccentric shaft type

BRAKE SYSTEM

Service brake Hydrostatic and mechanical type

Parking brake Mechanical type

STEERING SYSTEM Hydraulic type (Articulated type)

ROLLS

Front : roll Vibrate & Drive

Rear : tire Drive

No. of tires 2

   Dimentions

Front roll
:width × dia. (mm) 2,130 × 1,530 2,130 × 1,600

Front roll
:width × dia. (in) 84" × 60" 84" × 63"

Number of pads - 140

Pad height - 100 mm (4 in)

   Tire size 23.1 - 26 - 8 PR (OR)

   Suspension system

Front : roll Rubber damper type

Rear : tire Rigid

FULUID CAPACITY

Fuel tank 300 L (79.3 gal)

Hydraulic oil tank 62.4 L (16.5 gal)

MODEL		SV700D	SV700T
WEIGHTS
Gross weight		15,000 kgf (33,069 lbs)
	Load on front	8,500 kgf (18,739 lbs)
	Load on rear	6,500 kgf (14,330 lbs)
DIMENSIONS
Overall length		5,900 mm (232 in)	5,905 mm (232 in)
Overall width		2,290 mm (90 in)
Overall height without awning		2,150 mm (85 in)	2,160 mm (85 in)
Overall height with awning		2,840 mm (112 in)	2,860 mm (111 in)
Wheelbase		3,000 mm (118 in)
Rolling width		2,130 mm (84 in)
Ground clearance		420 mm (16.5 in)	430 mm (16.9 in)
Curb clearance		495 mm (19.5 in)	530 mm (20.9 in)
SPEED (F & R)
1st		0 - 6 km/h (0 - 3.7 mph)
2nd		0 - 10 km/h (0 - 6.2 mph)
VIBRATING POWER
Frequency
	L	36.7 Hz (2,200 vpm)
	H	27.5 Hz (1,650 vpm)
Centrifugal force (Max.)
	L	220 kN (22,400 kgf)
	H	275 kN (28,000 kgf)
	L / H	49,383 lbs / 61,729 lbs
Amplitude
	L	0.90 mm
	H	2 mm
MIN.TURNING RADIUS		5.6 m (221 in)
GRADABILITY		62 % (32deg.)
ENGINE
Model		Isuzu "BB-6BG1TRJ" Diesel Engine with turbo charger
Type		Water-cooled, 4-cycle, 4-cycle, 6-cylinder in-line, vertical mounted, overhead valve, direct injection type
Piston displacement		6,494 L (396 cu.in)
Rated output		124 kW (169 PS) / 2,200 min^-1
Battery		24V (12V - 100Ah × 2)
POWER LINE
Transmission		Hydrostatic transmission
Differential		Auto lock type
Final drive		Planetary gear
VIBRATING SYSTEM
Transmission		Hydrostatic transmission
Vibrator		Eccentric shaft type
BRAKE SYSTEM
Service brake		Hydrostatic and mechanical type
Parking brake		Mechanical type
STEERING SYSTEM		Hydraulic type (Articulated type)
ROLLS
	Front : roll	Vibrate & Drive
	Rear : tire	Drive
	No. of tires	2
Dimentions
	Front roll :width × dia. (mm)	2,130 × 1,530	2,130 × 1,600
	Front roll :width × dia. (in)	84" × 60"	84" × 63"
	Number of pads	-	140
	Pad height	-	100 mm (4 in)
Tire size		23.1 - 26 - 8 PR (OR)
Suspension system
	Front : roll	Rubber damper type
	Rear : tire	Rigid
FULUID CAPACITY
Fuel tank		300 L (79.3 gal)
Hydraulic oil tank		62.4 L (16.5 gal)
