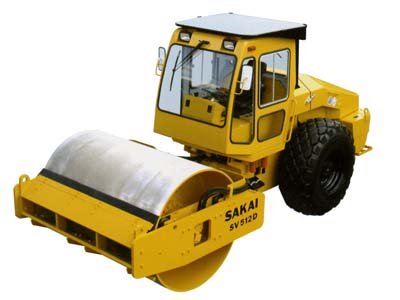

SV512D/T/TF

Features

Excellent performance

•	Well-balanced front and rear weight distribution contributes to excellent traction and slope climbing ability.
•	The amplitude of the largest in the world class carries out greatest compaction.
•	The hydrostatic transmission offers variable speed ranges and an ideal speed is easily selected for either working or transit.

Easy operation and riding comfort

•	Despite powerful vibration, the chassis and operator are fully protected from vibration thanks to SAKAI's patented, unique vibration isolation system.
•	Due to the rubber isolator mounted operator deck, the operator's riding comfort is excellent, and electrical instruments and gauges are free from vibration.
•	The vibration ON-OFF switch located on the forward-reverse lever facilitates timely vibration control.

High Safety Standard

•

The roller is equipped with dual independent braking systems. The primary brake is hydrostatic and applied through putting the forward-reverse lever in its "NEUTRAL" position. The three-way secondary braking system is a mechanical spring-applied, hydraulically released type (SAHR) that can be operated either through a push button or pedal or automatically through engine or hydraulic system failure.

•

The overall machine design provides the operator with excellent all-around visibility. (1m × 1m)

Excellent serviceability

•	The engine and hydraulic components are enclosed in a compartment. The engine hood opens fully for easy access to engine and hydraulic components for service and maintenance.
•	Large ball bearing and taper bearings are employed in the centerpin mechanism to prolong service life and lubrication intervals.
•	The vibrator bearing lubrication system keeps lubricating bearings even during hillside operation.

Specifications are subject to change without notice.
MODEL SV512D SV512T SV512TF

WEIGHTS

Gross weight 10,500kgf (23,148lbs) 10,850kgf (23,920lbs) 13,000kgf (28,660lbs)

Load on front 5,450kgf (12,015lbs) 5,800kgf (12,787lbs) 7,950kgf (17,527lbs)

Load on rear 5,050kgf (11,133lbs) 5,050kgf (11,133lbs) 5,050kgf (11,133lbs)

DIMENSIONS

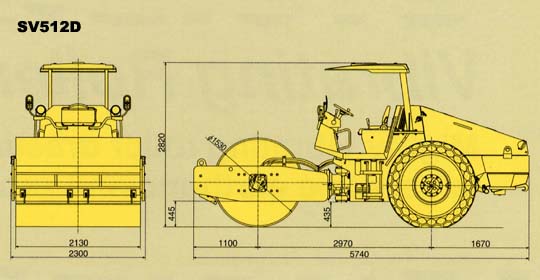

Overall length 5,740mm (226") 5,755mm (227") 5,740mm (226")

Overall width 2,300 mm (91")

Overall height without awning 2,115 mm (83")

Overall height with awning 2,820 mm (111")

Wheelbase 2,970 mm (117")

Rolling width 2,130 mm (84")

Ground clearance 435 mm (17.1")

Curb clearance 445 mm (17.5")

SPEED (F & R)

1st 0 - 6 km/h (0 - 3.7 mph)

2nd 0 - 10 km/h (0 - 6.2 mph)

VIBRATING POWER

Frequency

L        Hz (vpm) 36.7 (2,200) 36.7 (2,200) 36.7 (2,200)

H        Hz (vpm) 27.5 (1,650) 27.5 (1,650) 27.5 (1,650)

Centrifugal force (Max.)

L        kN (kgf) 172 (17,500) 186 (19,000) 186 (19,000)

H        kN (kgf) 226 (23,000) 245 (25,000) 245 (25,000)

L / H        (lbs) 38,581 / 50,706 41,887 / 55,115 41,887 / 55,115

Amplitude

L 0.90 mm 0.90 mm 0.80 mm

H 2.00 mm 2.00 mm 1.70 mm

MIN.TURNING RADIUS 5.6 m (221")

GRADABILITY 62 % 50 %

ENGINE

Model Perkins "1004-40TW" Diesel Engine
with turb charger

Type Water-cooled, 4-cycle, 4-cylinder in-line,vertical mounted overhead valve, direct injection type

Piston displacement 3,990 L (243 cu,in)

Rated output 85.5 kW (116.2 PS) / 2,200 min^-1

Battery 24V (12V - 100Ah × 2)

POWER LINE

Transmission Hydrostatic transmission

Differential Auto lock type

Final drive Planetary gear

VIBRATING SYSTEM

Transmission Hydrostatic transmission

Vibrator Eccentric shaft type

BRAKE SYSTEM

Service brake Hydrostatic and mechanical type

Parking brake Mechanical type

STEERING SYSTEM Hydraulic type (Articulated type)

ROLL & TIRES

Front : roll Vibrate & Drive

Rear : tire Drive

No. of tires 2

   Dimentions

Front roll
:width × dia.     (mm) 2,130 × 1,530 2,130 × 1,600 2,130 × 1,650

Front roll
:width × dia.     (in) 84" × 60" 84" × 63" 84" × 65"

Number of pads - 140 140

Pad height - 100 mm (4") 100 (4")

   Tire size 23.1 - 26 - 8 PR (OR)

   Suspension system

Front : roll Rubber damper type

Rear : tires Rigid

FULUID CAPACITY

Fuel tank 250 L (66 gal)

Hydraulic oil tank 50 L (13 gal)

MODEL		SV512D	SV512T	SV512TF
WEIGHTS
Gross weight		10,500kgf (23,148lbs)	10,850kgf (23,920lbs)	13,000kgf (28,660lbs)
	Load on front	5,450kgf (12,015lbs)	5,800kgf (12,787lbs)	7,950kgf (17,527lbs)
	Load on rear	5,050kgf (11,133lbs)	5,050kgf (11,133lbs)	5,050kgf (11,133lbs)
DIMENSIONS
Overall length		5,740mm (226")	5,755mm (227")	5,740mm (226")
Overall width		2,300 mm (91")
Overall height without awning		2,115 mm (83")
Overall height with awning		2,820 mm (111")
Wheelbase		2,970 mm (117")
Rolling width		2,130 mm (84")
Ground clearance		435 mm (17.1")
Curb clearance		445 mm (17.5")
SPEED (F & R)
1st		0 - 6 km/h (0 - 3.7 mph)
2nd		0 - 10 km/h (0 - 6.2 mph)
VIBRATING POWER
Frequency
	L Hz (vpm)	36.7 (2,200)	36.7 (2,200)	36.7 (2,200)
	H Hz (vpm)	27.5 (1,650)	27.5 (1,650)	27.5 (1,650)
Centrifugal force (Max.)
	L kN (kgf)	172 (17,500)	186 (19,000)	186 (19,000)
	H kN (kgf)	226 (23,000)	245 (25,000)	245 (25,000)
	L / H (lbs)	38,581 / 50,706	41,887 / 55,115	41,887 / 55,115
Amplitude
	L	0.90 mm	0.90 mm	0.80 mm
	H	2.00 mm	2.00 mm	1.70 mm
MIN.TURNING RADIUS		5.6 m (221")
GRADABILITY		62 %		50 %
ENGINE
Model		Perkins "1004-40TW" Diesel Engine with turb charger
Type		Water-cooled, 4-cycle, 4-cylinder in-line,vertical mounted overhead valve, direct injection type
Piston displacement		3,990 L (243 cu,in)
Rated output		85.5 kW (116.2 PS) / 2,200 min^-1
Battery		24V (12V - 100Ah × 2)
POWER LINE
Transmission		Hydrostatic transmission
Differential		Auto lock type
Final drive		Planetary gear
VIBRATING SYSTEM
Transmission		Hydrostatic transmission
Vibrator		Eccentric shaft type
BRAKE SYSTEM
Service brake		Hydrostatic and mechanical type
Parking brake		Mechanical type
STEERING SYSTEM		Hydraulic type (Articulated type)
ROLL & TIRES
	Front : roll	Vibrate & Drive
	Rear : tire	Drive
	No. of tires	2
Dimentions
	Front roll :width × dia. (mm)	2,130 × 1,530	2,130 × 1,600	2,130 × 1,650
	Front roll :width × dia. (in)	84" × 60"	84" × 63"	84" × 65"
	Number of pads	-	140	140
	Pad height	-	100 mm (4")	100 (4")
Tire size		23.1 - 26 - 8 PR (OR)
Suspension system
	Front : roll	Rubber damper type
	Rear : tires	Rigid
FULUID CAPACITY
Fuel tank		250 L (66 gal)
Hydraulic oil tank		50 L (13 gal)
