SV201D

SV201D-catalog Download Catalogue(8MB)

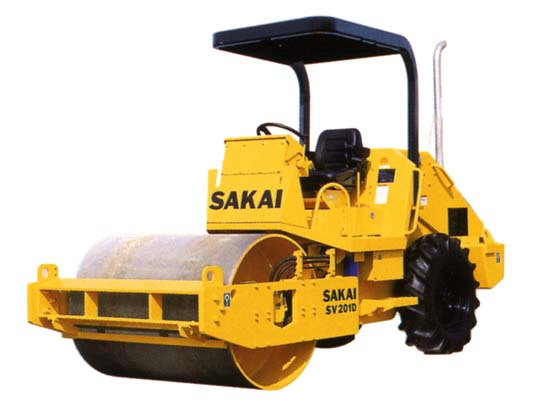

SV201D

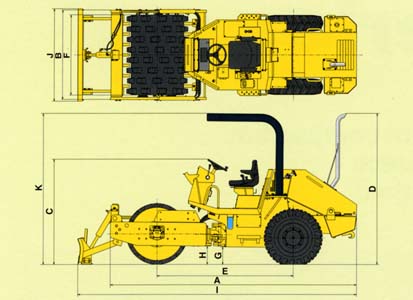

Dimensions
Dimensions A B C D E F G H I J K
mm (in) 4,210
(166")
1,530
(60")
1,795
(70.7")
2,600
(102")
2,330
(92")
1,370
(54")
290
(11.4")
300
(11.8")
- - 2,575
(101.4")

Features
  Excellent performance
The balance between front and rear wheels is optimized to ensure the greatest attractive force and grade ability in the class. The differential locking device for the front and rear wheels is provided as standard equipment to further improve the traveling capacity on soft land. Sufficient driving force is available even for TB type blade work.
Three basic drum types are available; smooth drum, padfoot drum and smooth-to-padfoot quick-change combination drum.
The exhaust pipe located at a high position eliminates the exhaust gas problem during work in a trench.
  Easy operation and riding comfort
Despite powerful vibration, the chassis and operator are fully protected from vibration thanks to SAKAI's patented, unique vibration isolation system.
Due to the rubber isolator mounted operator deck, the operator's riding comfort is excellent, and electrical instruments and gauges are free from vibration.
The vibration ON-OFF switch located on the forward-reverse lever facilitates timely vibration control.
All control and instruments are ergonomically arranged in order to reduce operator fatigue.
  High Safety Standard
The roller is equipped with dual independent braking systems. The primary brake is hydrostatic and applied through putting the forward-reverse lever in its "NEUTRAL" position. The three-way secondary braking system is a mechanical spring-applied, hydraulically released type (SAHR) that can be operated either through a push button or pedal or automatically through engine or hydraulic system failure.
The overall machine design provides the operator with excellent all-around visibility.(1m×1m)
  Excellent serviceability
The engine and hydraulic components are enclosed in a compartment. The engine hood opens fully for easy access to engine and hydraulic components for service and maintenance.
Large ball bearing and taper bearings are employed in the center-pin mechanism to prolong service life and lubrication intervals.

Specifications are subject to change without notice.
MODEL SV201D
WEIGHTS (with Rops Canopy)
Gross weight kg(lbs) 4,350 (9,590)
  Load on front kg(lbs) 2,150 (4,740)
  Load on rear kg(lbs) 2,200 (4,850)
SPEED (F & R) 0 - 7.4 km/h (0 - 4.6mph)
VIBRATING POWER
 Frequency Hz (vpm) 30 (1,800)
 Centrifugal force (Max.)
  kN (kgf) 72 (7,300)
  lbs 16,100
MIN.TURNING RADIUS 4.0m (157in)
GRADABILITY 59% (30° )
ENGINE
Model Cummins "B3.3-C" Diesel Engine
Type Water-coold, 4-cycle
Piston displacement L(cu,in) 3,261 (199)
Rated output 45kW {60HP}61 / 2,200min-1
Battery 12V (80Ah)
POWER LINE
Transmission Hydrostatic transmission (Stepless)
Differential Auto lock type
Final drive Planetary gear
VIBRATING SYSTEM
Transmission Hydrostatic transmission
Vibrator Eccentric shaft type
BRAKE SYSTEM
Service brake Hydrostatic and mechanical type
Parking brake Mechanical, disk type
STEERING SYSTEM Hydraulic type (Articulated type)
ROLL & TIRES
  Front : roll Smooth drum, Vibrate, Drive
  Rear : tire Traction-tread tires, Drive
  No.of tires 2
   Dimentions
  Smooth drum : width × dia.  mm (in) 1,370 (54) × 1,000 (39)
  Padfoot drum : width × dia.  mm (in) 1,370 (54) × 1,050 (41)
  Number of pads 80
  Pad height  mm (in) 70 (2.8)
   Tire size 11.2 - 20 - 6PR
   Suspension system
  Front : roll Rubber damper type
  Rear : tire Rigid
FULUID CAPACITY
Fuel tank  L (gal) 100 (26)
Hydraulic oil tank  L (gal) 38 (10)
