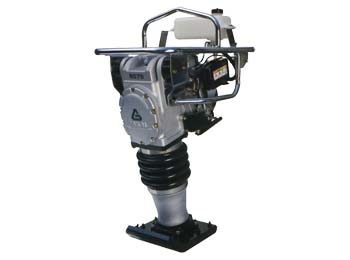

RS75MH

Features

Compaction stroke is increased by 30% from earlier models.
Tapered front corner shoe are standard equipment for protection of the side edge of pavement.
One-touch shut-down lever with fuel shut-off function for easy and safe transportation (Patented).
SAKAI's original large size rubber isolators assures easy control and comfortable operation.
Multi air cleaner system promises long interval of engine maintenance.

*Specifications are subject to change without notice.
*Max. Output shows Maximum output of engine manufacturer. It does not always mean max. output under operation of the machine.

MODEL RS75MH

WEIGHTS kg(lbs) 81(180)

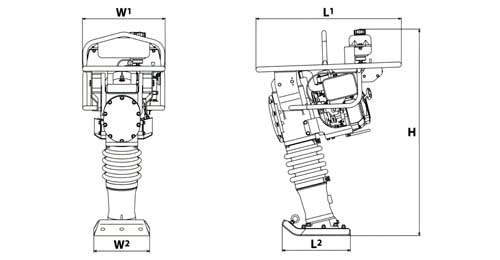

DIMENSIONS mm(in)

Overall length L1 795(31.5)

Overall width W1 420(16.5)

Overall height H 1,040(41)

Ramming Shoe W2×L2 280×340(11×13.5)

PERFORMANCE

Ramming Stroke mm(in) 50-70(2-3)

Frequency Hz(vpm) 11.3-12(680-720)

Speed m/min(ft/min) 17-21(56-69)

ENGINE

Model HONDA GX120K1

Type Air-cooled, 4-cycle

Max. output kW(PS)/min^-1 2.6(3.5)/3,600

Starting System Recoil Starter

Fuel tank capacity liter(gal) 2.2(0.6)

MODEL		RS75MH
WEIGHTS	kg(lbs)	81(180)
DIMENSIONS	mm(in)
Overall length	L1	795(31.5)
Overall width	W1	420(16.5)
Overall height	H	1,040(41)
Ramming Shoe	W2×L2	280×340(11×13.5)
PERFORMANCE
Ramming Stroke	mm(in)	50-70(2-3)
Frequency	Hz(vpm)	11.3-12(680-720)
Speed	m/min(ft/min)	17-21(56-69)
ENGINE
Model		HONDA GX120K1
Type		Air-cooled, 4-cycle
Max. output	kW(PS)/min^-1	2.6(3.5)/3,600
Starting System		Recoil Starter
Fuel tank capacity	liter(gal)	2.2(0.6)
