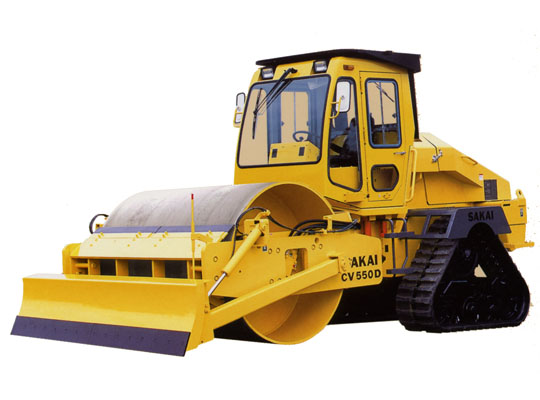

CV550D/550DV/550T

Features

•	The CV550 Series of Vibratory Soil Compactor is designed with track drive, which enables these machines to conquer steep slope applications while compacting.
•	The machines provide a cost-effective means of compacting jobs like landfill construction which in the past had to be handled by a vibratory compactor winched up the slope by dozer, thus necessitating the added expense of the dozer its operator.
•	Wide variation of drum types; Smooth drum or padfoot drum with standard vibration mode (single eccentric type) or vertical vibration mode (twin eccentriic type) are available to select from Standard vibration models: CV550D (smooth drum), CV550T (padfoot drum) and Vertical vibration model; CV550DV (smooth drum).
•	The CV550 Series is able to climb slopes up to 62% (32deg.) while developing the centrifugal forces required to reach density in a minimal number of passes over material.
•	This concept also speed compaction of steep embankments, earthen dams and any application where slopes and / or traction may be a problem.

Specifications are subject to change without notice.
Smooth drum type Padfoot drym type

MODEL
(Vibration mode) CV550D
Standard mode CV550DV
Vertical mode CV550T
Standard mode

WEIGHT

Gross weight kg (lbs) 13,700(30,210) 14,200(31,310) 14,050(30,980)

Load on front kg (lbs) 6,400(14,110) 6,900(15,210) 6,750(14,880)

Load on rear kg (lbs) 7,300(31,310)

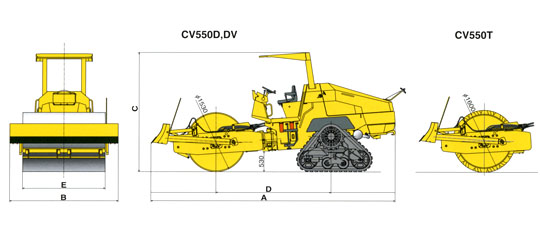

DEMINTIONS

Overall length (A) mm (in) 6,290 (248)

Overall width (B) mm (in) 2,800 (110)

Overall
heigth with rops (C) mm (in) 3,070 (121)

Wheel base (D) mm (in) 2,970 (117)

Rolling width (E) mm (in) 2,130 (84)

Min,Turning Radius m (in) 6.2 (244)

Curb clearance mm (in) 440 (17.5)

Ground clearance mm (in) 440 (17.5)

SPEED

Speed :L km/h(mph) 0 - 3.0 (0 - 1.9)

Speed :H km/h(mph) 0 - 5.3 (0 - 3.3)

Gradability % ( °) 62 (32)

VIBRATING POWER

Centrifugal force
(max):L kN(kgf)lbs 172(17,500)38,580 196(20,000)44,090 181(18,500)40,790

Centrifugal force
(max):H kN(kgf)lbs 226(23,000)50,710 275(28,000)61,730 245(25,000)55,120

Amplitude L/H mm (in) 0.74/1.69(0.029/0.067) 0.71/1.77(0.028/0.070) 0.69/1.70(0.027/0.067)

Frequency L/H Hz (vpm) 40/30 (2,400/1,800)

ENGINE

Model ISUZU "BB-6BG1T" Diesel engine with turbo charger

Type Water-cooled,4-cylinder,6-cylinder in-line direct injection type

Rated output kW(HP)PS/min¹ 126 (169) 171 / 2,200

Piston displacement L (cu,in) 6.494 (396)

Battery 24V (12V -100 Ah × 2)

POWER LINE

Transmission Type Hydrostatic transmission

Speed 2 speed shifts

Differential Auto lock type

Final drive Planetary gear

VIBRATING SYSTEM

Transmission Hydrostatic transmission

Vibrator System Eccentric shaft Twin eccentric shafts Eccentric shaft

BRAKE SYSTEM

Service brake Hydrostatic and mechanical type

Parking brake Mechanical, internal expanding type

STEERING SYSTEM Hydraulic type (Articulated type)

ROLL & WHEEL

Front roll Vibrate & Drive

Rear crawler Drive

Dimension

Front roll
(width×dia) mm (in) 2,130×1,530 (84×60) 2,130×1,600
(84×63)

number of pads - 140

pad hight mm (in) - 100 (3.9)

pad area cm²(sq.in) - 136 (21)

Rear crawler
(width×pich) mm (in) 500 × 125 (19.7 × 4.9)

Fuel Tank 250 L (66gal)

Hydraulic Oil Tank 50 L (13gal)

Rops Steel frame

		Smooth drum type		Padfoot drym type
MODEL (Vibration mode)		CV550D Standard mode	CV550DV Vertical mode	CV550T Standard mode
WEIGHT
Gross weight	kg (lbs)	13,700(30,210)	14,200(31,310)	14,050(30,980)
Load on front	kg (lbs)	6,400(14,110)	6,900(15,210)	6,750(14,880)
Load on rear	kg (lbs)	7,300(31,310)
DEMINTIONS
Overall length (A)	mm (in)	6,290 (248)
Overall width (B)	mm (in)	2,800 (110)
Overall heigth with rops (C)	mm (in)	3,070 (121)
Wheel base (D)	mm (in)	2,970 (117)
Rolling width (E)	mm (in)	2,130 (84)
Min,Turning Radius	m (in)	6.2 (244)
Curb clearance	mm (in)	440 (17.5)
Ground clearance	mm (in)	440 (17.5)
SPEED
Speed :L	km/h(mph)	0 - 3.0 (0 - 1.9)
Speed :H	km/h(mph)	0 - 5.3 (0 - 3.3)
Gradability	% ( °)	62 (32)
VIBRATING POWER
Centrifugal force (max):L	kN(kgf)lbs	172(17,500)38,580	196(20,000)44,090	181(18,500)40,790
Centrifugal force (max):H	kN(kgf)lbs	226(23,000)50,710	275(28,000)61,730	245(25,000)55,120
Amplitude L/H	mm (in)	0.74/1.69(0.029/0.067)	0.71/1.77(0.028/0.070)	0.69/1.70(0.027/0.067)
Frequency L/H	Hz (vpm)	40/30 (2,400/1,800)
ENGINE
Model		ISUZU "BB-6BG1T" Diesel engine with turbo charger
Type		Water-cooled,4-cylinder,6-cylinder in-line direct injection type
Rated output	kW(HP)PS/min¹	126 (169) 171 / 2,200
Piston displacement	L (cu,in)	6.494 (396)
Battery		24V (12V -100 Ah × 2)
POWER LINE
Transmission	Type	Hydrostatic transmission
	Speed	2 speed shifts
Differential		Auto lock type
Final drive		Planetary gear
VIBRATING SYSTEM
Transmission		Hydrostatic transmission
Vibrator System		Eccentric shaft	Twin eccentric shafts	Eccentric shaft
BRAKE SYSTEM
Service brake		Hydrostatic and mechanical type
Parking brake		Mechanical, internal expanding type
STEERING SYSTEM		Hydraulic type (Articulated type)
ROLL & WHEEL
Front roll		Vibrate & Drive
Rear crawler		Drive
Dimension
Front roll (width×dia)	mm (in)	2,130×1,530 (84×60)		2,130×1,600 (84×63)
number of pads		-		140
pad hight	mm (in)	-		100 (3.9)
pad area	cm²(sq.in)	-		136 (21)
Rear crawler (width×pich)	mm (in)	500 × 125 (19.7 × 4.9)
Fuel Tank		250 L (66gal)
Hydraulic Oil Tank		50 L (13gal)
Rops		Steel frame
