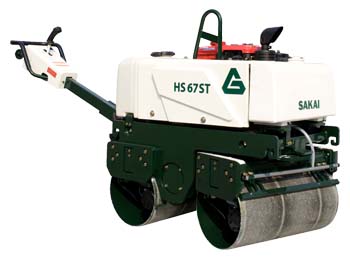

HS67ST

Features

Small wall clearance and ample curb clearance allows the closest possible approach to any obstacles.
Easily adjustable sprinkler system and wide water pipes splashes water onto both drums from edge to edge.
Pin lock system on handle provide safety when handle is folded.
Positive pin lock brake is provided for parking.
Easy water tank filling and draining is possible with large diameter water cap and chained drain plug at the bottom.

*Specifications are subject to change without notice.
*Max. Output shows Maximum output in catalogue of engine manufacture. It does not always mean max. under operation of the machine.
MODEL HS67ST

WEIGHTS kg(lbs) 750(1,655)

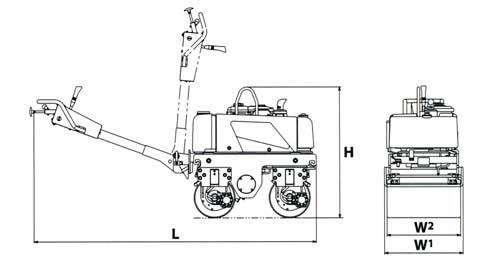

DIMENSIONS mm(in)

Overall length L 2,475(97)

Overall width W1 685(27)

Overall height H 1,155(45)

Compacting width W2 635(25)

PERFORMANCE

Frequency Hz(vpm) 55(3,300)

Centrifugal force kN(kgf)lbs 11.8(1,200)2,655

Work speed km/h(mph) 0-3.5(0-2.2)

Gradability %(deg.) 38(21)

Power line Hydrostatic type

Vibrating system Eccentric shaft type

Brake system Mechanical, pin lock type

Rolling system Tandem type both drum drive

ENGINE

Model YANMAR NFAD6-ESA

Type Water-cooled 4cycle diesel

Max. output kW(PS)/min^-1 4.4(6)/2,500

Starting system Electric Start

FULUID CAPACITY

Fuel tank liter(gal) 5.2(1.4)

Sprinkler (gravity) liter(gal) 30(7.9)

MODEL		HS67ST
WEIGHTS	kg(lbs)	750(1,655)
DIMENSIONS	mm(in)
Overall length	L	2,475(97)
Overall width	W1	685(27)
Overall height	H	1,155(45)
Compacting width	W2	635(25)
PERFORMANCE
Frequency	Hz(vpm)	55(3,300)
Centrifugal force	kN(kgf)lbs	11.8(1,200)2,655
Work speed	km/h(mph)	0-3.5(0-2.2)
Gradability	%(deg.)	38(21)
Power line		Hydrostatic type
Vibrating system		Eccentric shaft type
Brake system		Mechanical, pin lock type
Rolling system		Tandem type both drum drive
ENGINE
Model		YANMAR NFAD6-ESA
Type		Water-cooled 4cycle diesel
Max. output	kW(PS)/min^-1	4.4(6)/2,500
Starting system		Electric Start
FULUID CAPACITY
Fuel tank	liter(gal)	5.2(1.4)
Sprinkler (gravity)	liter(gal)	30(7.9)
